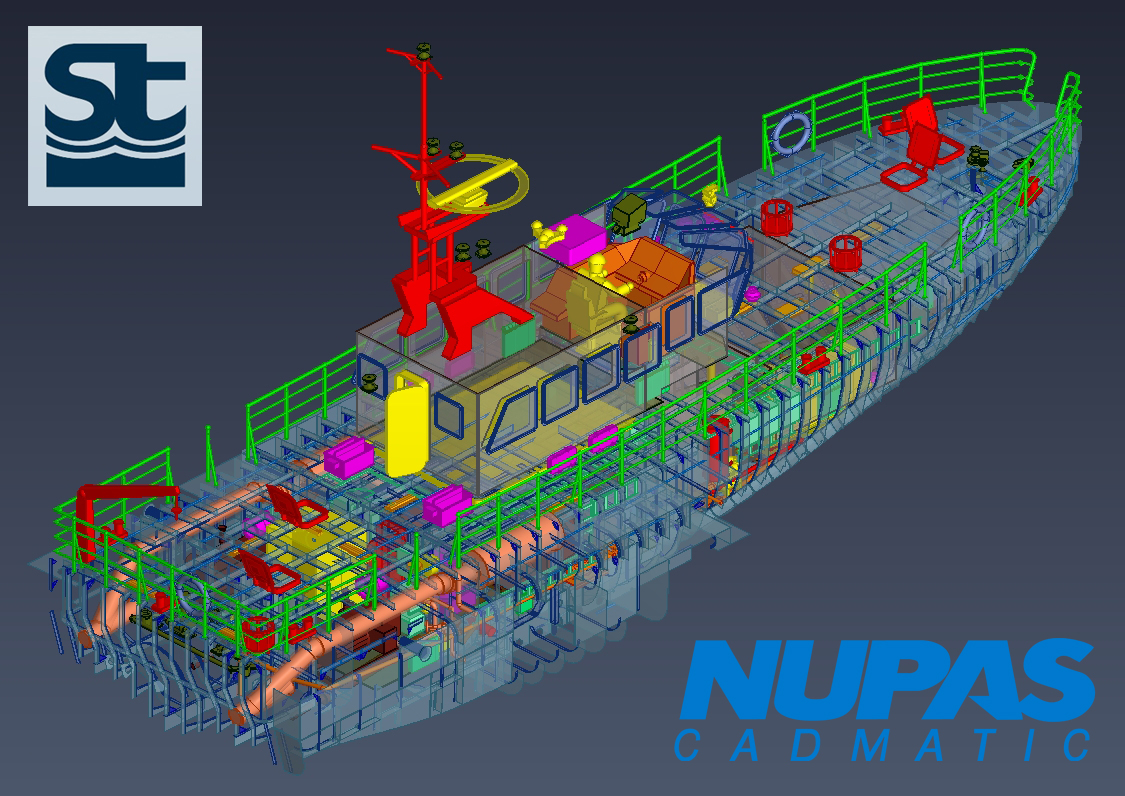

Nupas-Cadmatic new trend in ship design



To meet the new building requirement, Saigon Shipbuilding and Marine Industry One member Co., Ltd signed contract to buy Nupas-Cadmatic software to serve new building area. This software is produced by Elomatic company based on Autocad, professional 3D environment, managing and publish object on 2D, 3D drawings. As known, this software is applied around the world and brings practical effects. Saigon Shipmarin bravely invested 310.000 EUR to own this software, besides investing 1 billion for machines, equipments equivalent to this software and consulting, technology handing over.

This software includes 3 modules: Napa, Nupas and Cadmat

– Napa module: line out based on real rate, drawing and adjust lines become more correct because this software will show areas which do not reach the fairness so the designer will adjust accordingly. Besides, Napa has another supplementary functions such as: stability, launching,…

– Cadmatic can support for designing and managing the interlacing piping system in engine room. One particularity of this is checking collision, mange individual object and supply one library with various equipments which is upgraded according to demand. Electric part designing and constructing can be done on Cadmatic.

– The next important part is Nupas module; this is used for designing structures, erect the whole vessel structure on 3D space. The same as Cadmatic, Nupas manage data and allow publishing detailed specifications, sub-blocks and blocks. The special thing is that nesting will choose the best arranging method to save materials.

In addition, this software allows putting out and putting in data, update adjusted information in rapid and correct way. The whole software completed from line out to detailed cutting
